• Pickup bed includes bed assist step (Deleted when (ZW9) pickup bed delete is ordered.)
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package (Not available with (X31) Off-Road Package.)
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 18" (45.7 cm) painted steel, Silver, 8-spoke (Requires single rear wheels.)
• Tires, LT275/70R18E all-terrain, blackwall (Requires single rear wheels.)
• Tire, spare LT275/70R18 all-terrain, blackwall (Included and only available with (QF6) LT275/70R18E all-terrain, blackwall tires with (E63) pickup bed single rear wheel models. Available to order when (ZW9) pickup bed delete and (QF6) LT275/70R18E all-terrain, blackwall tires are ordered with single rear wheel models.)
• Single Rear Wheels
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumper, front chrome lower
• Bumper, rear chrome with bumper CornerSteps
• CornerStep, rear bumper
• Bed Step, Black integrated on forward portion of bed on driver and passenger side (Not available with (ZW9) pickup bed delete.)
• Moldings, beltline, Black
• Cargo tie downs (12), fixed, rated at 500 lbs per corner
• Grille, Chrome surround with Black mesh
• Headlamps, LED reflector with incandescent turn signals and LED signature Daytime Running Lamps
• Taillamps, LED tail and SRW are incandescent stop, turn and reverse light and DRW are LED stop, turn and reverse light
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black
• Glass, solar absorbing, tinted
• Door handles, Black grained
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection caps, top (Deleted with (ZW9) pickup bed delete.)
• Tailgate, locking, utilizes same key as ignition and door (Included and only available with (QK1) standard tailgate. Deleted with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete.)

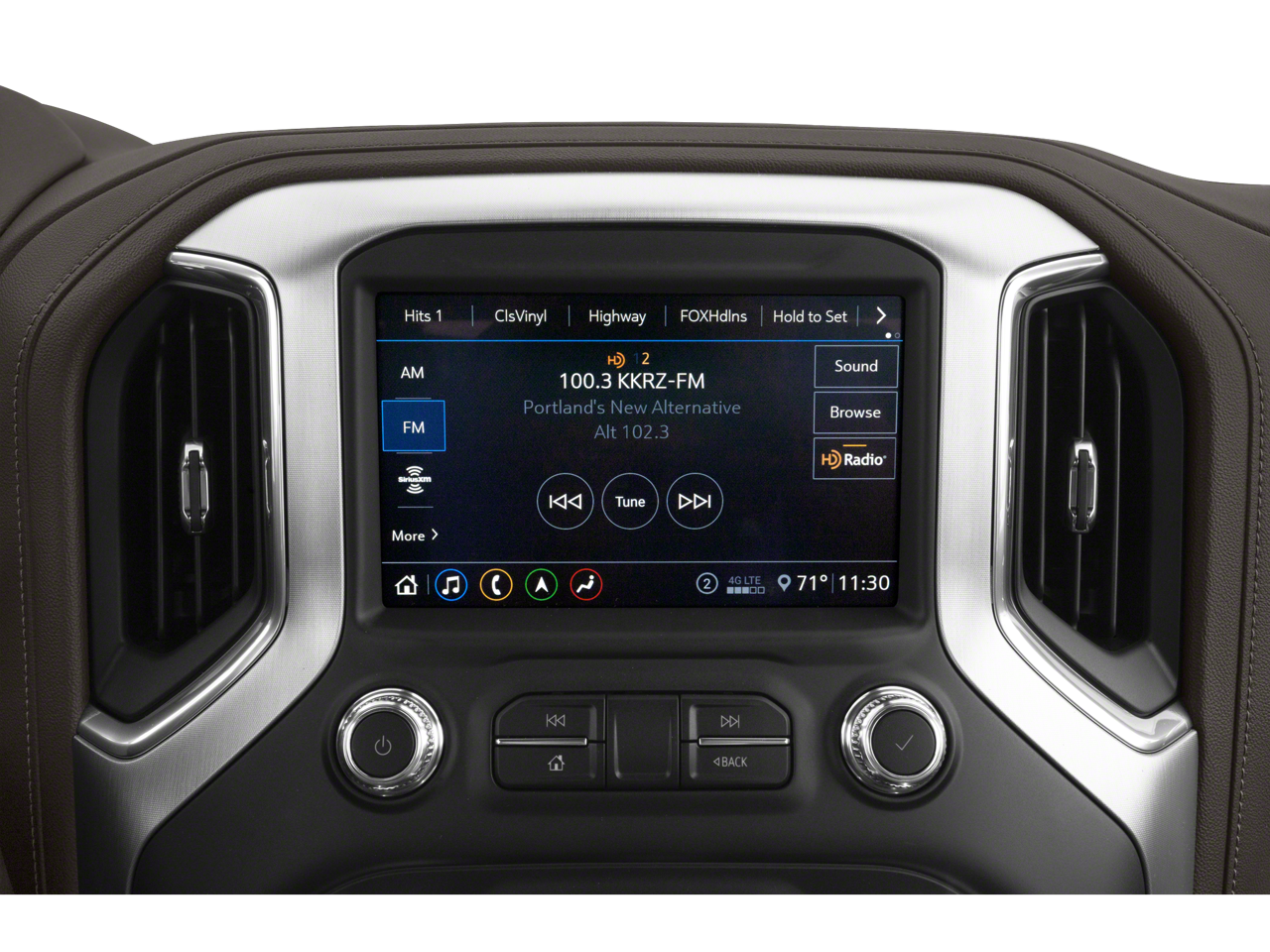

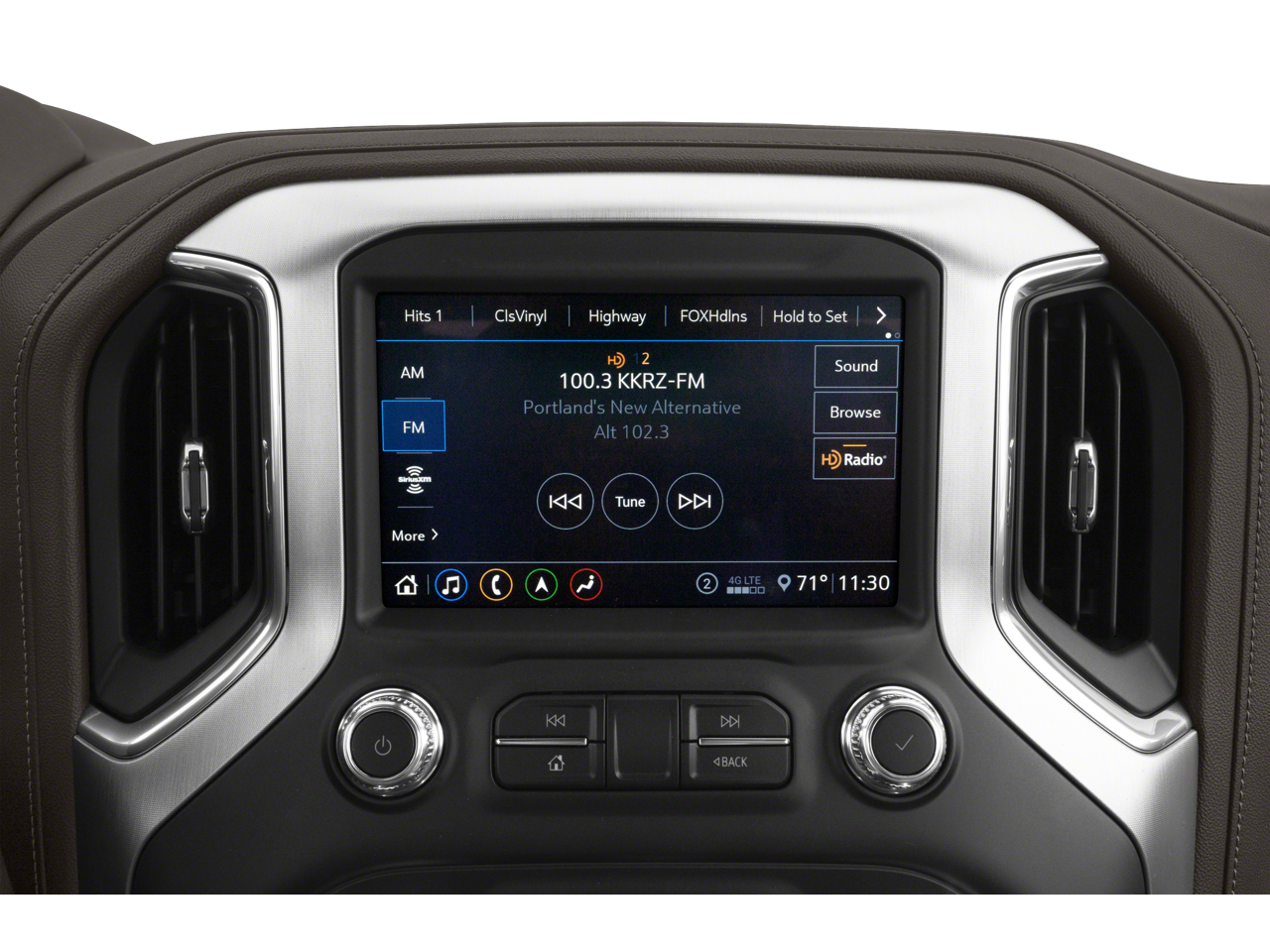

• Audio system, GMC Infotainment System with 7" diagonal color touchscreen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system

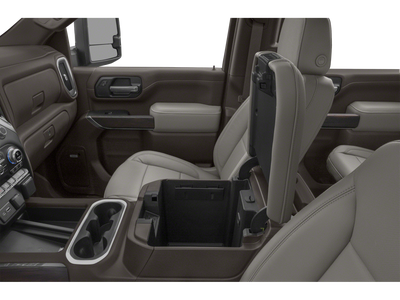

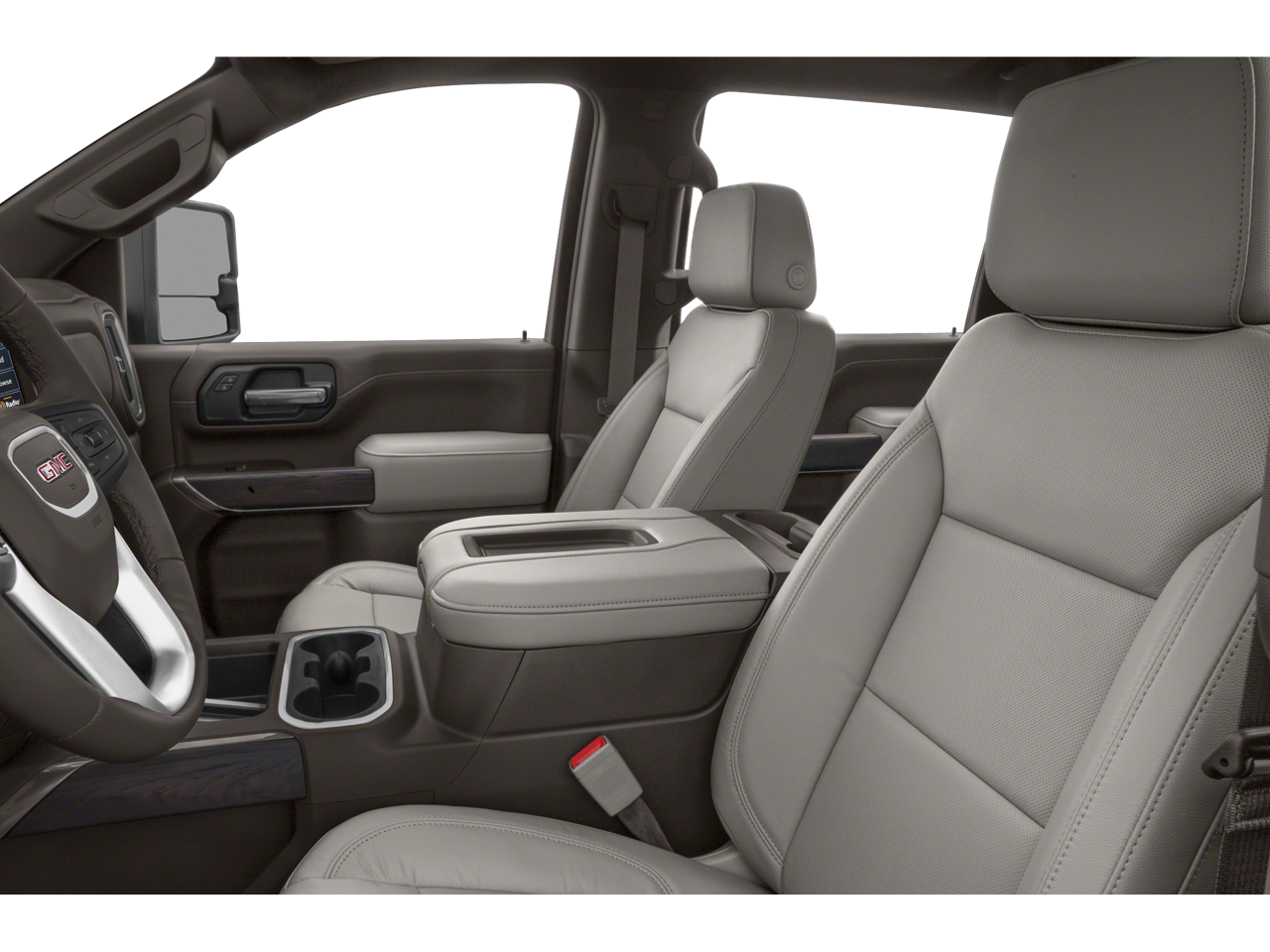

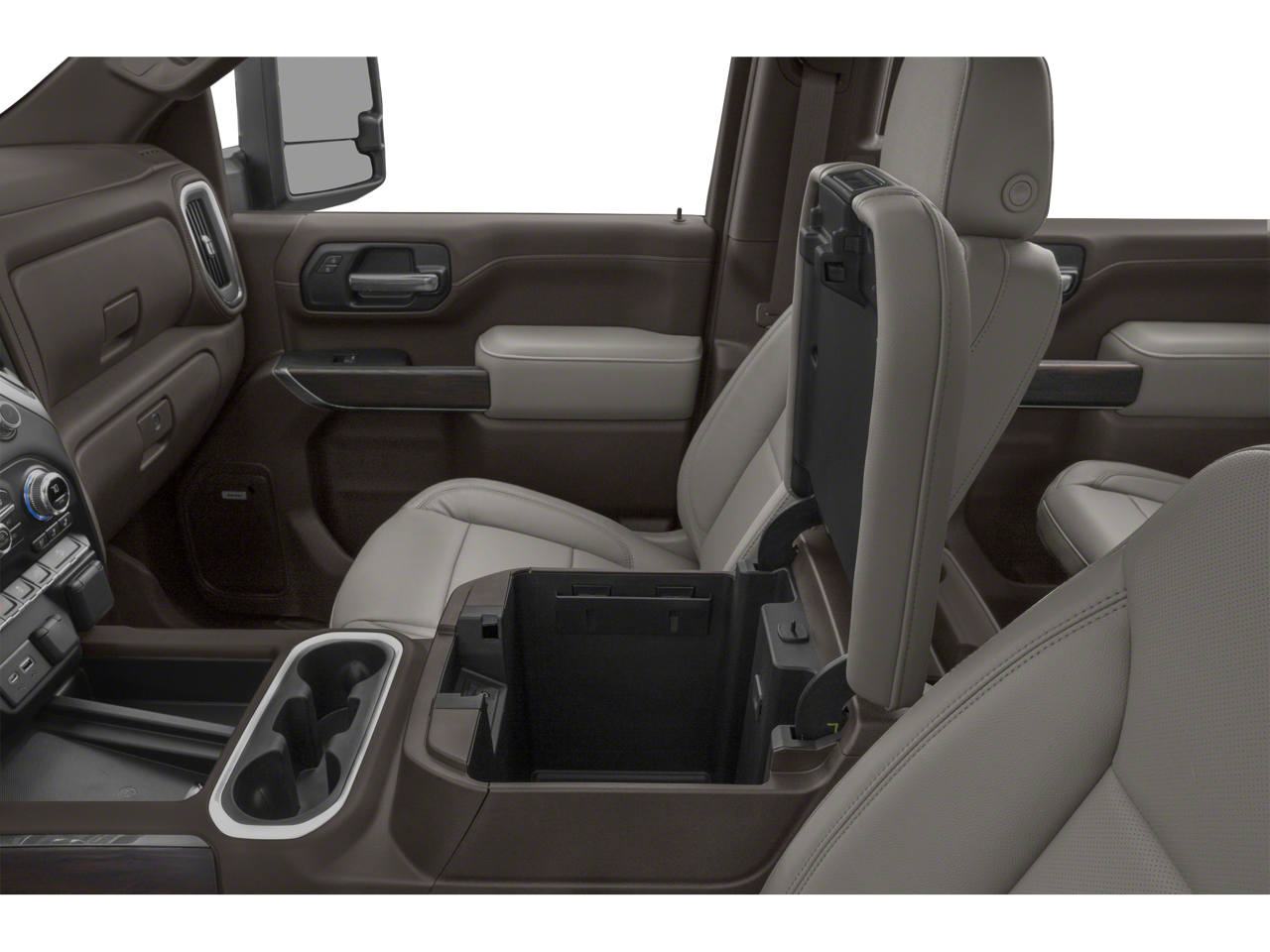

• Seats, front 40/20/40 split-bench with upper covered armrest storage
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

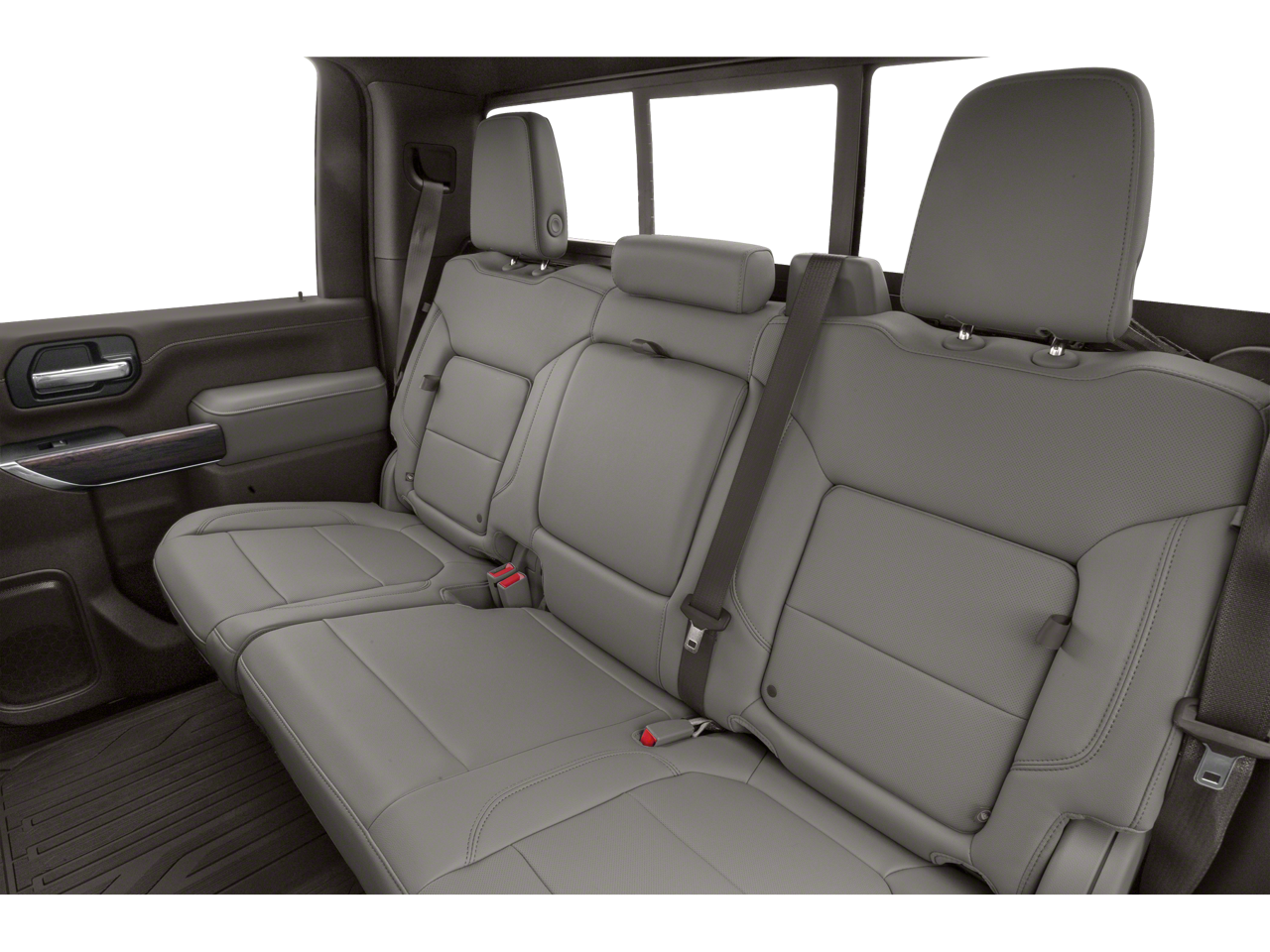

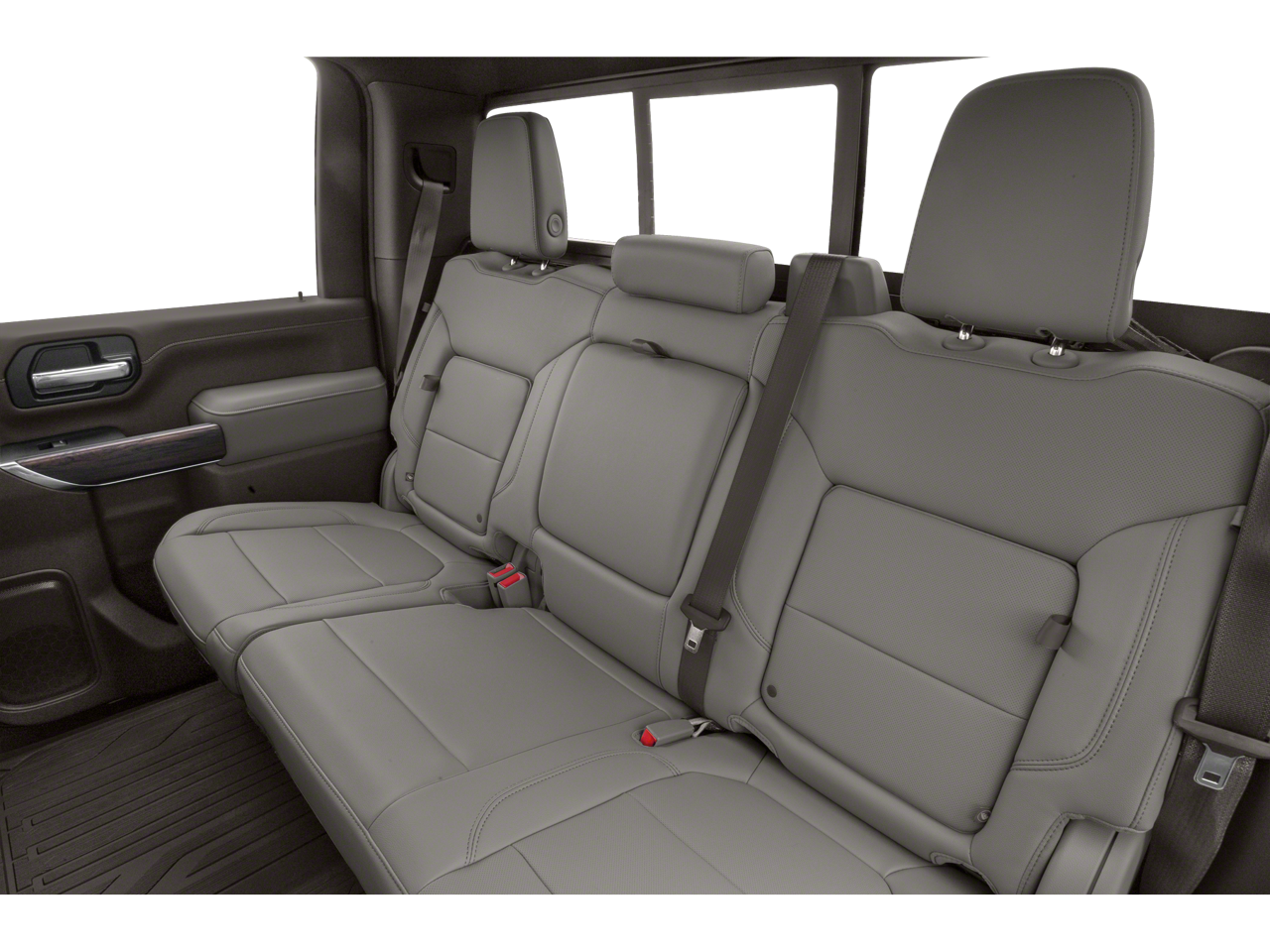

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature

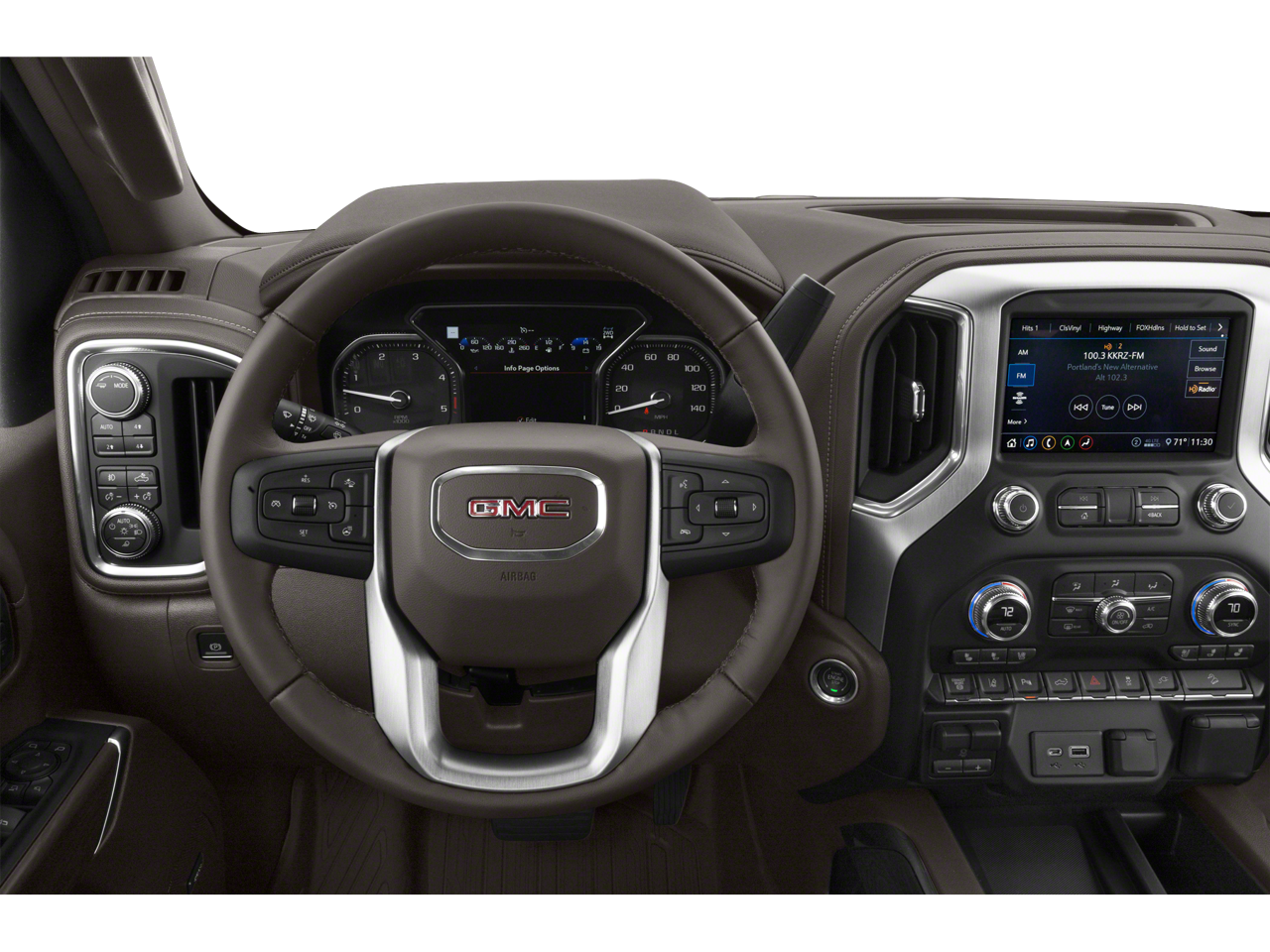

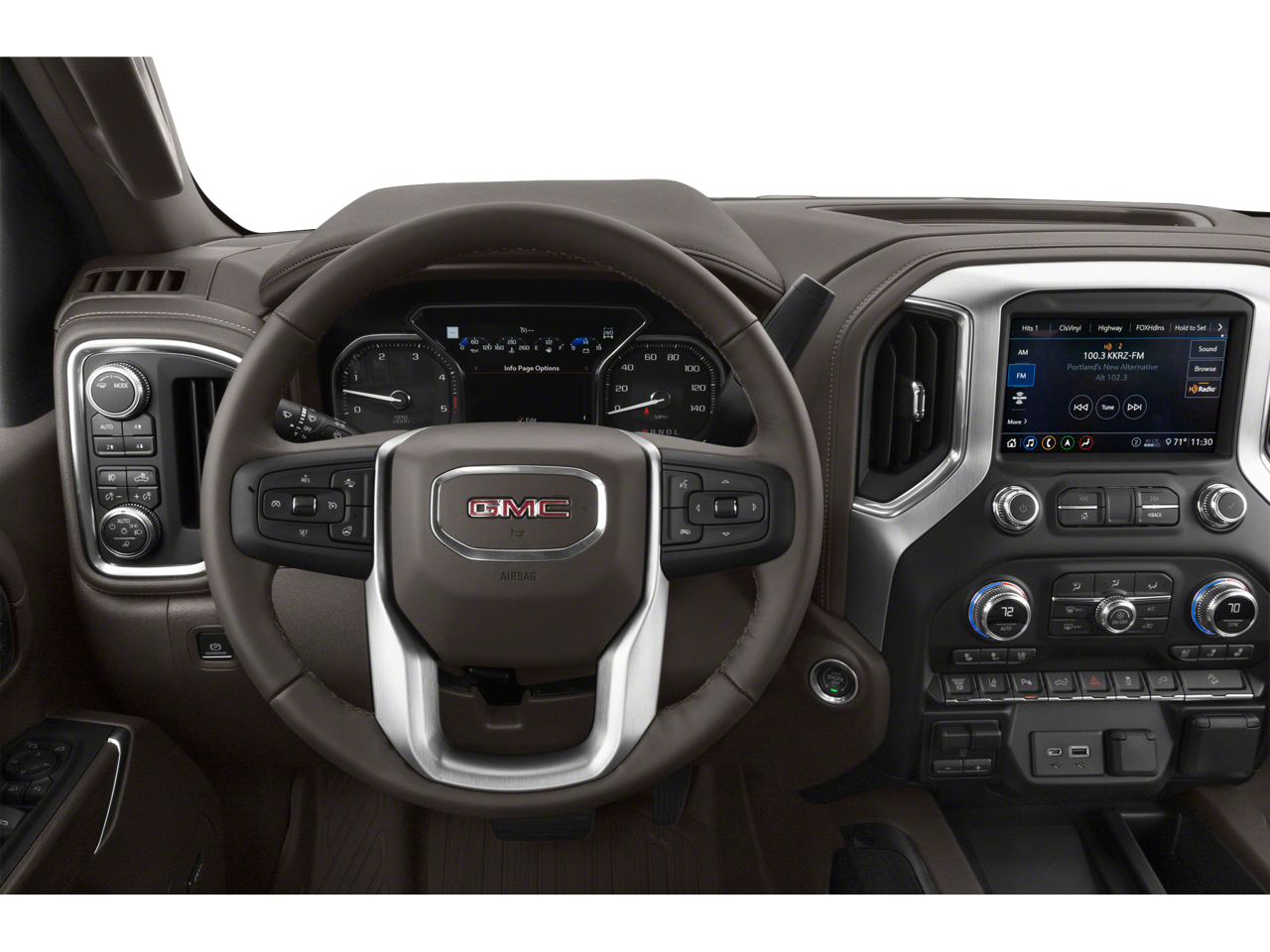

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Window, power front, drivers express up/down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• Window, power front, passenger express down (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• Windows, power rear, express down (Not available on Regular Cab models.)
• Door locks, power (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package.) (Standard on Crew Cab and Double Cab. On Regular Cab, included and only available with (PCI) Convenience Package or (ZLQ) Fleet Convenience Package.)
• Power outlet, front auxiliary, 12-volt
• USB ports, 2 (first row) located on instrument panel
• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Mirror, inside rearview, manual tilt
• Assist handles, front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.)

CONVENIENCE PACKAGE

• includes (AQQ) Remote Keyless Entry
• (QT5) EZ Lift power lock and release tailgate
• (AKO) tinted glass
• (UF2) LED cargo bed lighting
• (C49) rear-window defogger
• (DBG) outside power-adjustable vertical trailering with heated upper glass and (K34) cruise control

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

LED CARGO AREA LIGHTING

• located in cargo bed activated with switch on center switch bank or key fob

TRAILERING WIRING PROVISIONS

• for trailering
• 5th wheel and gooseneck trailer
• includes additional 7-way wiring harness located at the rear of the pickup bed attached to the rear frame cross member

• Convenience Package: LED Cargo Area Lighting; Remote Keyless Entry; EZ Lift Power Lock and Release Tailgate; Deep-Tinted Glass; Electric Rear-Window Defogger; Steering Wheel-Mounted Cruise Control; LED Cargo Area Lighting; Remote Keyless Entry; EZ Lift Power Lock and Release Tailgate; Deep-Tinted Glass; Outside Power-Adjustable Black Mirrors; Electric Rear-Window Defogger; Steering Wheel-Mounted Cruise Control
• Preferred Equipment Group 1SA: 2-Speed Electronic Shift Transfer Case; Front 40/20/40 Split-Bench Seat; Solar Absorbing Tinted Glass; Chrome Surround Grille with Black Mesh; Power Rear Windows with Express Down
• Integrated Trailer Brake Controller
• Steering Wheel-Mounted Cruise Control
• Electric Rear-Window Defogger
• 120-Volt Instrument Panel Power Outlet
• Deep-Tinted Glass
• LED Cargo Area Lighting
• Color-Keyed Carpeting Floor Covering
• Trailering Wiring Provisions
• Apple CarPlay/Android Auto smart device mirroring
• Rear Vision Camera rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Primary monitor touchscreen
• Part-time 4WD

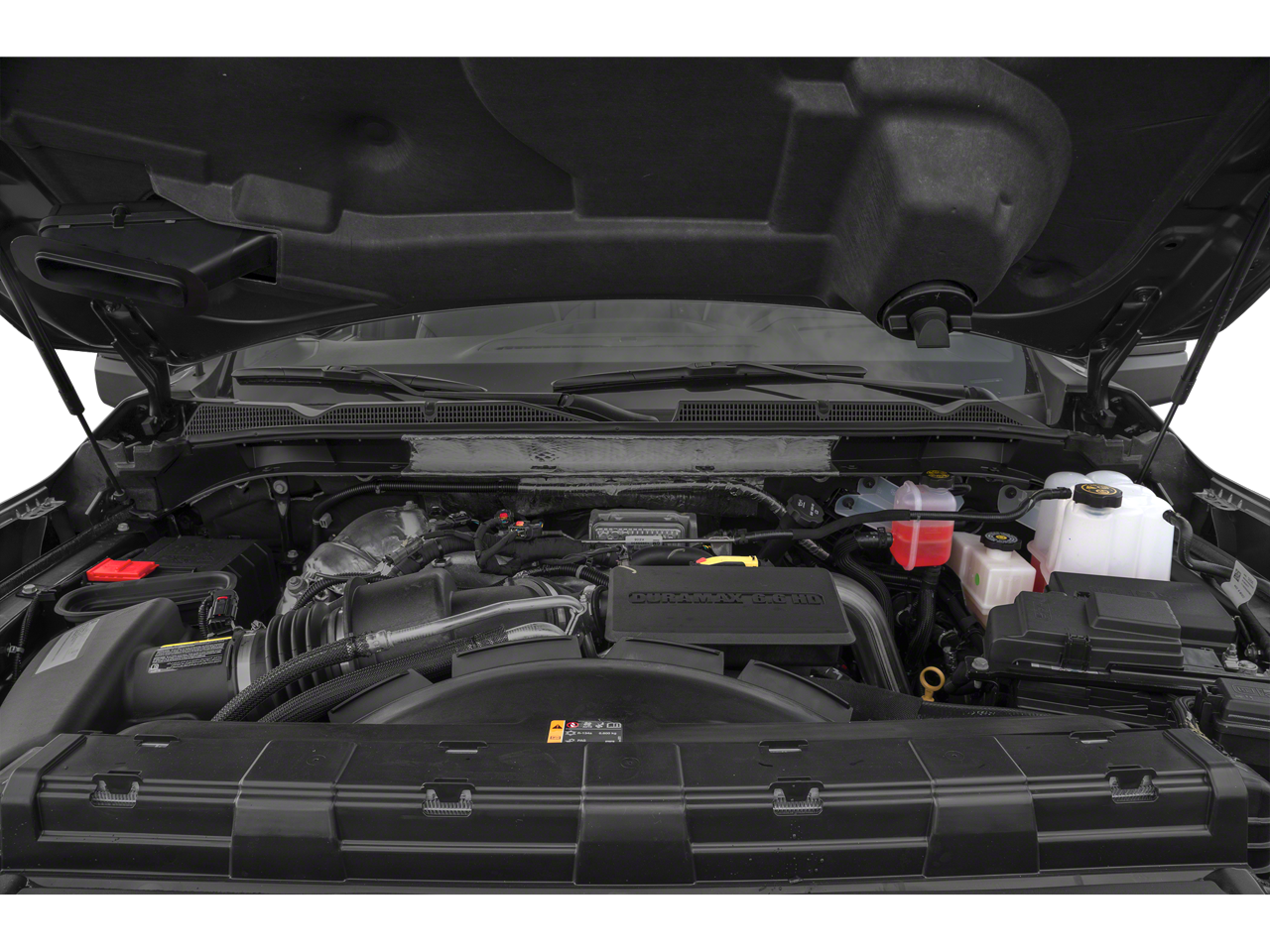

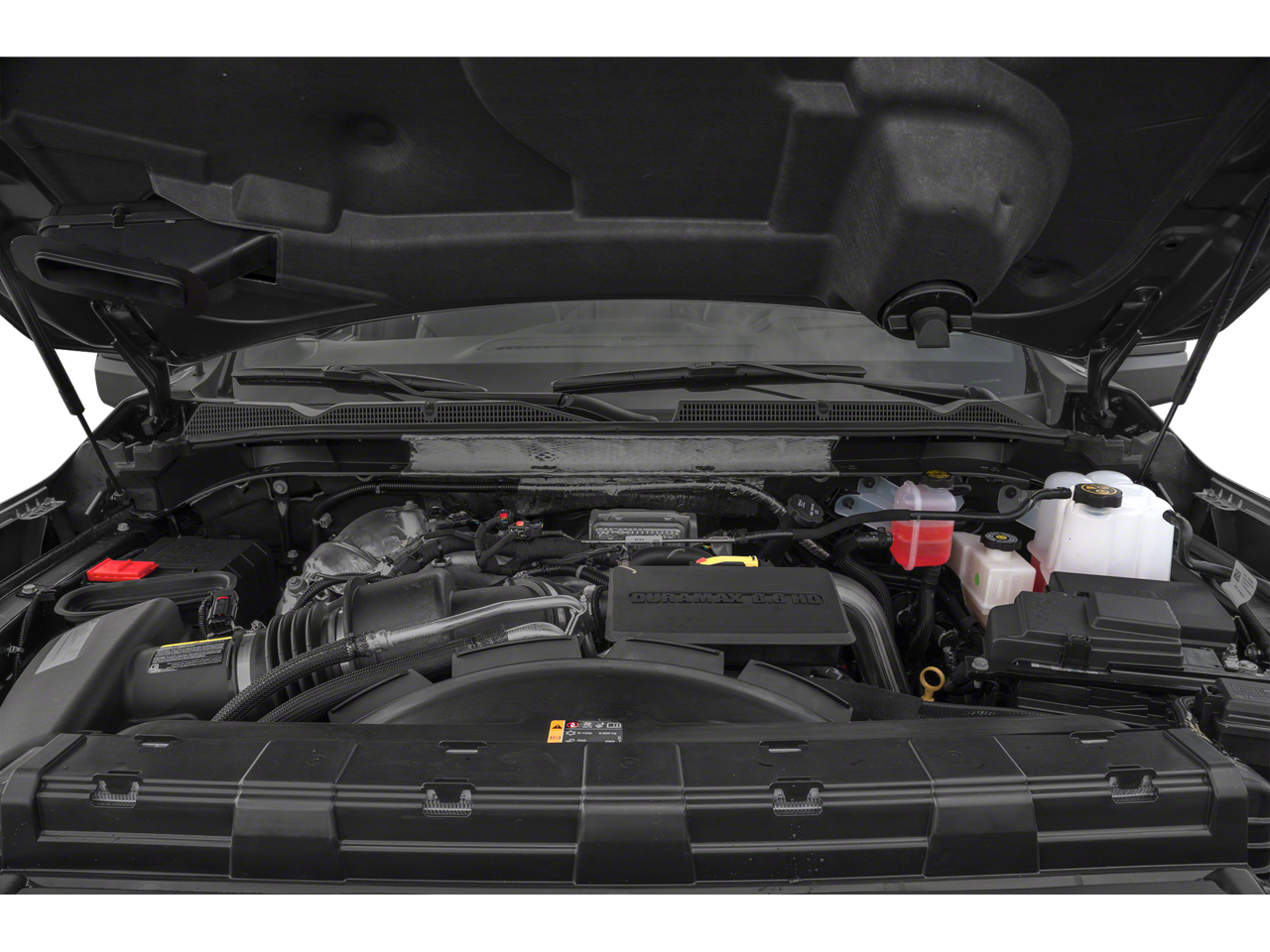

• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 445HP
• Duramax 6.6L V-8
• Teen Driver restricted driving mode/alerts
• Keyfob window control
• Mechanical
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer Sway Control (TSC) trailer sway control
• Vehicle and trailer reverse assist with visual graphic guidance only
• GMC Infotainment System external memory control
• Internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill Start Assist (HSA)
• Rear seat check warning
• 1 exterior 120V AC power outlet
• 0.400 kW
• LED daytime running lights
• BedStep integrated side steps
• EZ Lift
• EZ Lower
• Trailer hitch light
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Wheel hub covers
• Manual extendable trailer mirrors
• 18 x 8-inch front and rear silver steel wheels
• LT275/70SR18 AT BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• Intercooled turbo
• Allison 10-speed automatic
• Tow/Haul Mode selectable mode transmission
• Cloth rear seat upholstery

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7250
• Curb Weight - Front (lbs): 3851
• Curb Weight - Rear (lbs): 2915
• Gross Vehicle Weight Rating Cap (lbs): 11350
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16530
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4132
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm w/Torsion Bars
• Suspension Type - Rear: 3-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF6
• Rear Tire Order Code: QF6
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/70R18
• Rear Tire Size: LT275/70R18
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): 3020
• Rear Tire Capacity (lbs): 3638
• Spare Tire Capacity (lbs): 3638
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 18 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 52.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 250.08
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 80.87
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.1
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 11.18
• Ground Clearance, Rear (in): 11.18
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.2
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
